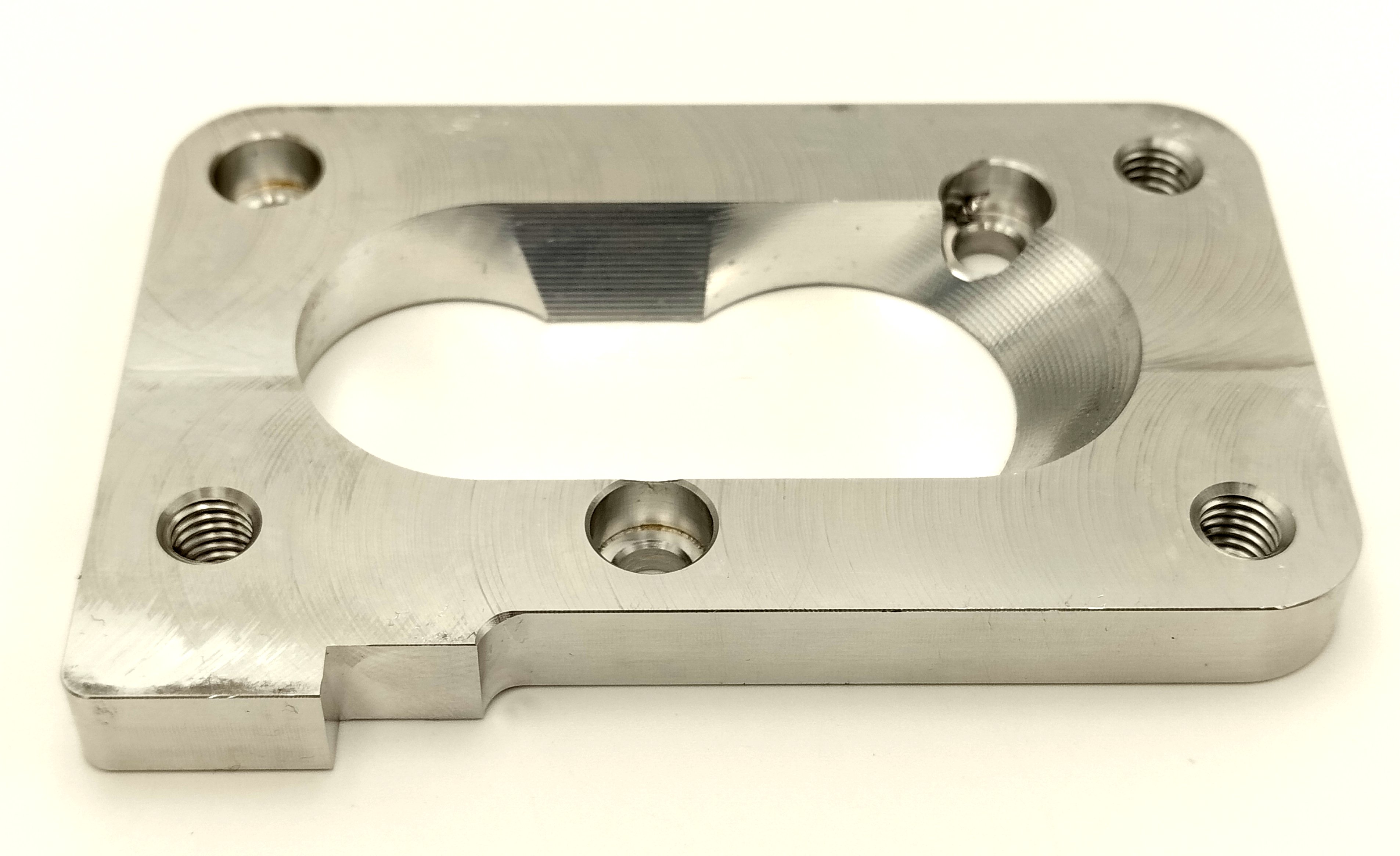

Base Adaptor Pierburg Pierburg to Weber 32/34DMTL
Converts Pierburg manifold to Weber 32/34 DMTL flange
The conversion will also need the following parts:
9990116800 gasket x 1
9990130800 stud x 3
9990089300 stud x 1
9990092600 screw x 2
These parts can be found under the Related Products tab

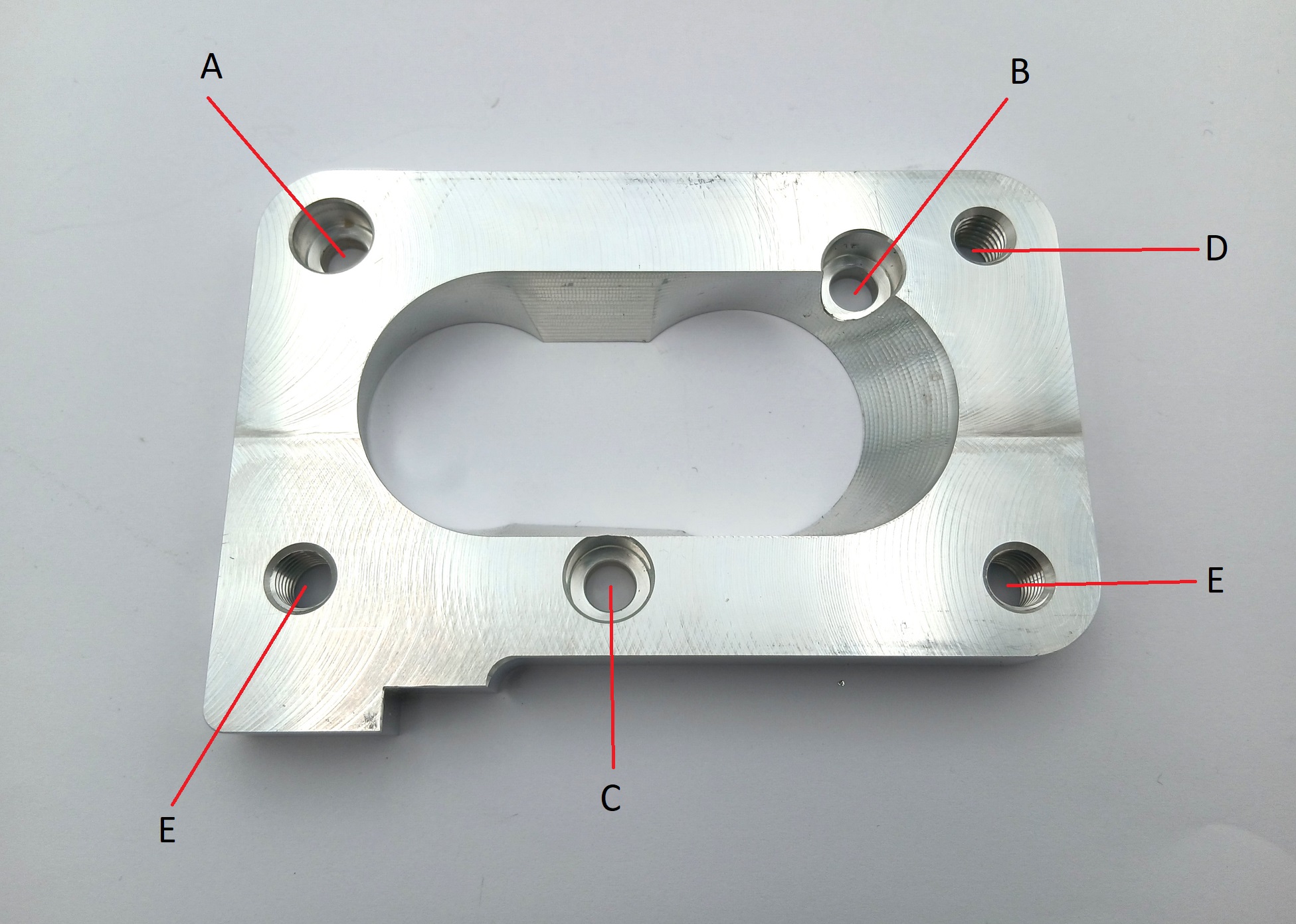

Measurements as follows (see photo)
Pierburg measurements
A to B = 70mm
A to C = 60mm
B to C = 55mm
DMTL measurements
D to E = 45mm
E to F = 88mm
